確実溶接六角ウェルドナット

安全な溶接六角溶接ナットは、さまざまなサイズとねじ構成で利用でき、さまざまなプロジェクトのさまざまな業界のニーズを満たすことができます。 Xiaoguo® は、パートナーとメーカーのグローバルネットワークにより、シームレスな物流を保証し、国境を越えた取引をスムーズかつ手間のかからないものにします。

モデル:BS 7670-1-4-1993

お問い合わせを送信

製品説明

When picking Secure Welding Hexagon Weld Nut, it’s smart to think about cost.

Although stainless steel has a relatively higher initial investment cost, which is mainly due to the high price of its raw materials, from the perspective of long-term use, if you need items that are not easy to rust and are durable, stainless steel can actually help you save money.

Regular steel nuts are cheaper to start with and work fine where rust isn’t a big issue—good when you’re trying to keep costs down now. Plus, since these nuts come in different sizes and grades, you can usually find one that fits both your project and your budget.

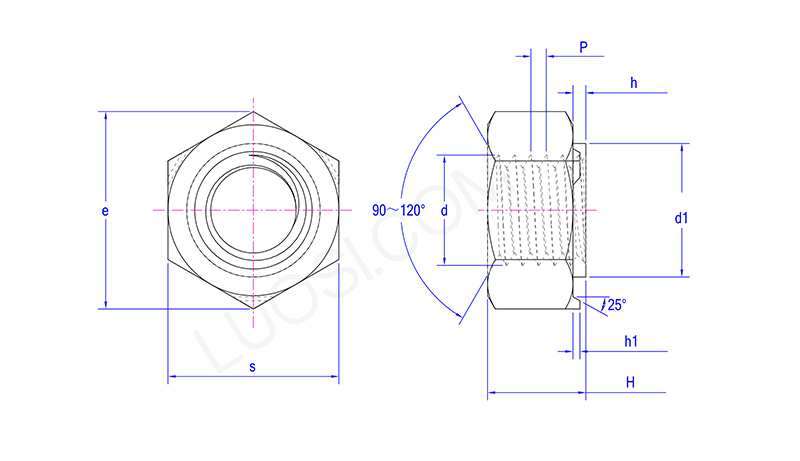

Mon	M3	M4	M5	M6	M8	M10	M12
P	0.5	0.7	0.8	1	1.25	1.5	1.75
d1 max	4.47	5.97	6.96	7.96	10.45	12.45	14.75
d1 min	4.395	5.895	6.87	7.87	10.34	12.34	14.64
e min	8.15	9.83	10.95	12.02	15.38	18.74	20.91
h max	0.55	0.65	0.7	0.75	0.9	1.15	1.4
h min	0.45	0.55	0.6	0.6	0.75	1	1.2
h1 max	0.25	0.35	0.4	0.4	0.5	0.65	0.8
h1 min	0.15	0.25	0.3	0.3	0.35	0.5	0.6
s max	7.5	9	10	11	14	17	19
s min	7.28	8.78	9.78	10.73	13.73	16.73	18.67
H max	3	3.5	4	5	6.5	8	10
H min	2.75	3.2	3.7	4.7	6.14	7.64	9.64

Product details

Secure Welding Hexagon Weld Nut, especially the stainless steel kinds or ones that are coated, don’t need much upkeep. Under normal conditions, you just check them now and then for any damage—like cracks or wearing down. If installed in a rust-prone environment, regular inspections are essential. If rust is detected on the coated nut, it should be promptly removed and the protective coating reapplied. If the nut is substantially damaged it should be replaced immediately. Regular inspection and effective maintenance can extend the service life of the nut.

Secure-welding Hexagon Weld Nut

Q:What’s the minimum order quantity for Secure Welding Hexagon Weld Nuts?

A:Sure. For standard hex weld nuts, our minimum order is 1,000 pieces. This helps us keep prices reasonable without cutting corners on quality. If you need a custom design—like a special size or material—the MOQ might change depending on what it takes to make them. Need just a few samples to test? Get in touch—we’ll try to work something out for you.
